border drawing problem in xorg-server-1.7.3
Jeremy, I'm going to describe the last remaining problem the I see with border drawing in the recent 1.7.3 server, using the simple border.c example code that I sent a few months ago. I'll attach the simple code again so that you can easily have the code. When I compile and run the code, it just creates a window with an internal window that has a border. Previously, the internal border was not shown, but you have fixed this in the recent servers. I have attached initial.png that shows the initial correct appearance when I first run the program: now when I drag the handle to make the window smaller to obscure the border (minimized.png): and then drag the handle to make the window larger again, exposing the internal border again, the internal border becomes corrupted (reexposed.png): The only instance I can find when the internal border is always shown correctly is when the window is all the way in the upper-left corner of my display. The further the window is from the upper-left corner, the more corruption there is of the internal border. With a larger program that I have which displays many buttons of various sizes, even the initial appearance of the borders can be slightly corrupted if the window is away from the upper-left corner. In case this is system/graphic card dependent, I'm running this on a MacBook Pro. Can you verify the same behavior with my simple test case? Thanks, Martin
Ah, ok. Thanks Martin. I knew there was something "not quite fixed," but I didn't have details. So I think this is the only real regression over 1.4. --Jeremy On Dec 3, 2009, at 12:27, Martin Otte wrote:
Jeremy,
I'm going to describe the last remaining problem the I see with border drawing in the recent 1.7.3 server, using the simple border.c example code that I sent a few months ago. I'll attach the simple code again so that you can easily have the code.
<border.c>

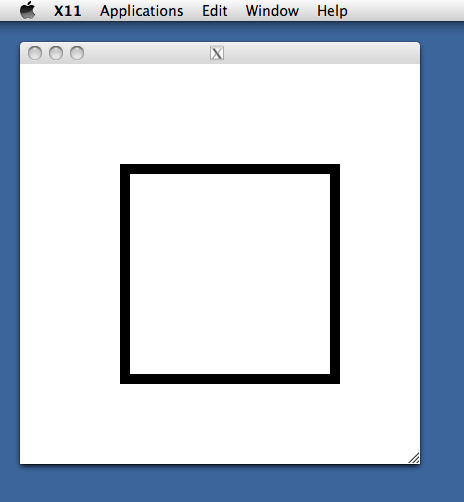

When I compile and run the code, it just creates a window with an internal window that has a border. Previously, the internal border was not shown, but you have fixed this in the recent servers. I have attached initial.png that shows the initial correct appearance when I first run the program:
<initial.png>

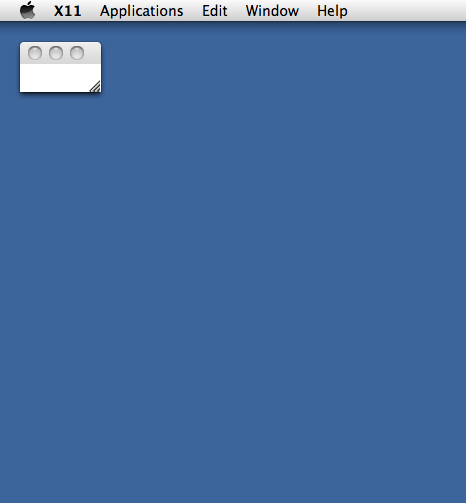

now when I drag the handle to make the window smaller to obscure the border (minimized.png):
<minimized.png>

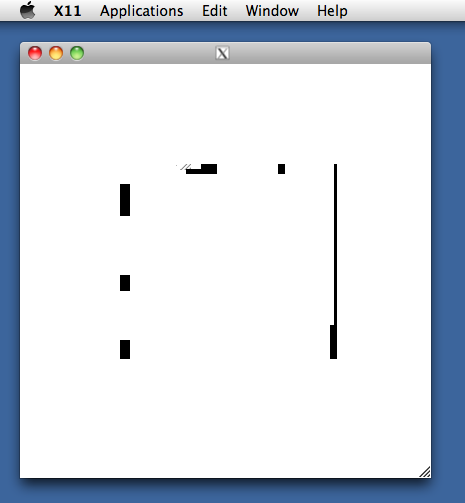

and then drag the handle to make the window larger again, exposing the internal border again, the internal border becomes corrupted (reexposed.png):
<reexposed.png>
The only instance I can find when the internal border is always shown correctly is when the window is all the way in the upper-left corner of my display. The further the window is from the upper-left corner, the more corruption there is of the internal border.
With a larger program that I have which displays many buttons of various sizes, even the initial appearance of the borders can be slightly corrupted if the window is away from the upper-left corner.
In case this is system/graphic card dependent, I'm running this on a MacBook Pro. Can you verify the same behavior with my simple test case?
Thanks, Martin
_______________________________________________ Xquartz-dev mailing list Xquartz-dev@lists.macosforge.org http://lists.macosforge.org/mailman/listinfo.cgi/xquartz-dev
Hi Jeremy, Please take a look at the attached screenshot. Note the missing "borders" around the "buttons" just above Black's kingside. Is this likely related to the "border drawing problem"? Thanks, Louis On Dec 3, 2009, at 4:19 PM, Jeremy Huddleston wrote:
Ah, ok. Thanks Martin. I knew there was something "not quite fixed," but I didn't have details. So I think this is the only real regression over 1.4.
--Jeremy
Martin Otte <otte@duke.edu> writes:
The only instance I can find when the internal border is always shown correctly is when the window is all the way in the upper-left corner of my display. The further the window is from the upper-left corner, the more corruption there is of the internal border.
This sounds much like the problem I'm seeing without any custom code at all, just open a few xterms. The border between the text area and the left-hand scroll bar is okay in the first xterm (which is at the upper left corner), and it gets less and less okay as the windows open further down from that. regards, tom lane
